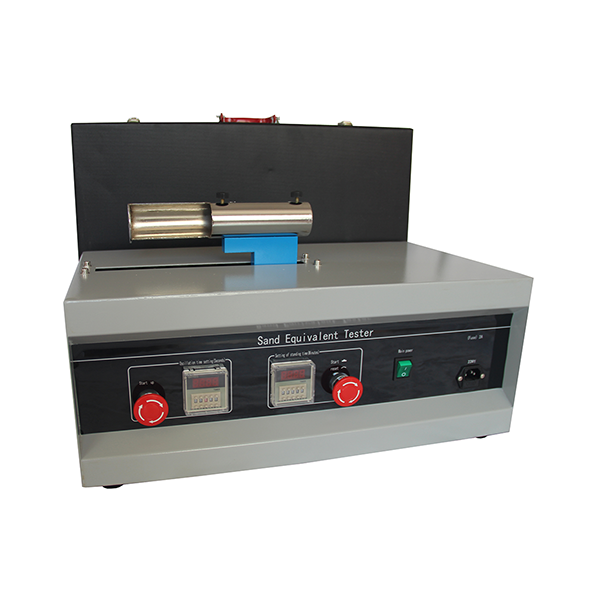

▶Used to determine the amount of silt or clay contamination in the fine aggregates (or soils).

▶It consists of sand equivalent shaker and sand equivalent test set.

▶The test set comprises: four measuring cylinder, two rubber stoppers, measuring can, irrigator tube, siphon assembly with bottle, weighted foot, funnel, graduated rule 1L bottle of stock solution (packed separately) and carrying case.

1. Rated power: 180W

2. Total weight: 50Kg

3. Dimensions: 670 × 560 × 550mm

4. The amplitude of the test tube: 20.3±1cm

5. Movement cycle: 180 cycles/min ±2times/min

6. The weight of the piston: 1Kg ± 5g

7. Plastic test tube: diameter 32mm±0.25mm height:420mm

8. The flushing pipe: diameter 6mm±0.5mm inner diameter: 4mm±0.2mm

9. The power supply: Working voltage 220V ± 10%

10. Ambient temperature: ≤35℃.

11. Relative humidity: ≤85%
