▶SYE series hydraulic compression testing machine is used for the compression test of concrete and other construction materials, manual load, digital display the value of pressure and ratio of loading. it can save and print the test result directly by the controller. it also can be equipped with computer to show the load curve and process the date.

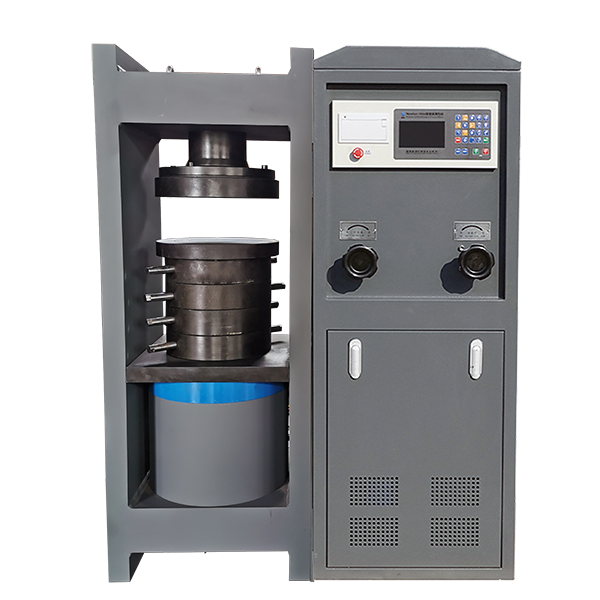

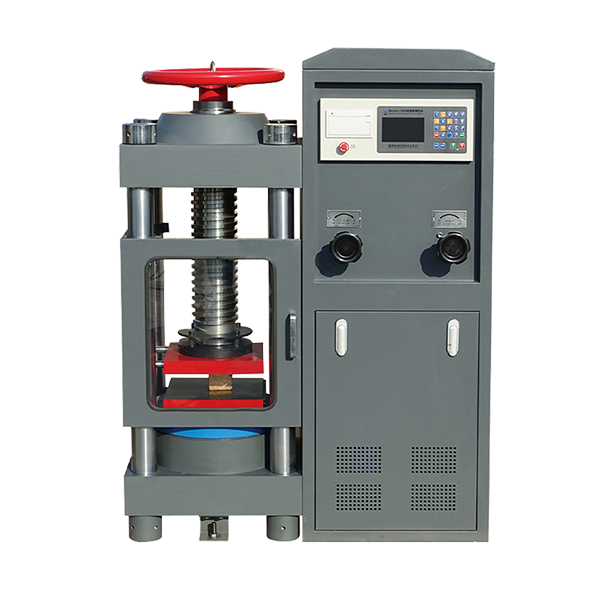

▶SYE series compression machines has been designed to meet the need for reliable and consistent testing .The load frame A is four steel column with cast iron cylinder, The load frame B is welding steel frame with cast iron cylinder, carrying the ball-seated upper platen. Positively located on the loading ram, which is protected from debris by a flexible cover, the lower platen is marked for the centring of cube and cylinder specimens.

▶The dimensions of the frame allow the testing of concrete cylinders up to 320 mm long x 160 mm diameter, 150 and 100 mm square cubes.
