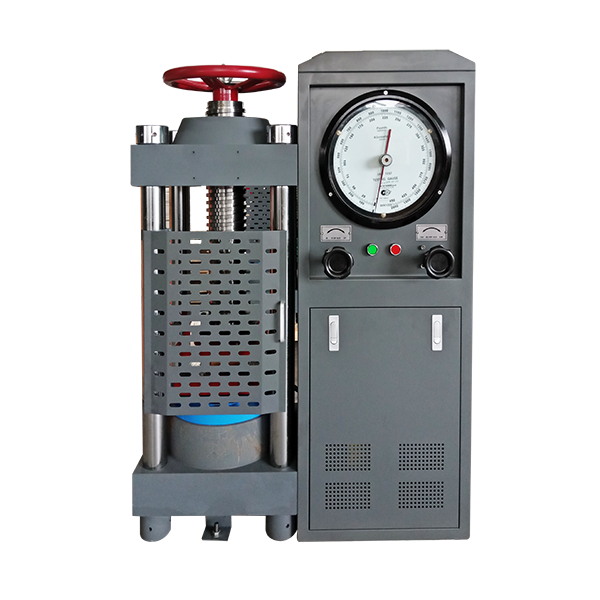

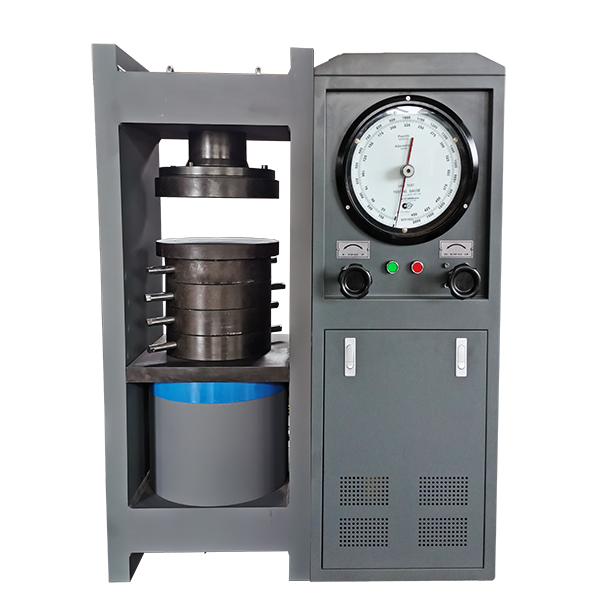

▶DYE series hydraulic compression testing machine is used for the compression test of concrete and other construction materials, manual load and UTS gauge.

▶UTS has specially designed an analogue gauge which is best solution for concrete compression testing machine. It is so unique that it can withstand high pressure with sudden release force from maximum drop to 0 force within a second (explosive sample). Besides that, it comes with a unique feature called "free fall bouncing effect" which it has no exact 0 point where conventional analogue gauges normally come with a 0 point stopper. Thanks to this feature, UTS gauges is long lasting and maintenance free. Each of the gauge is fine tuned to meet class 1 of it's range to the maximum force.

▶Single/Twin load gauge 300mm diameter with maximum red pointer.

▶Accuracy within +/- 1% error

▶Meet standard of BS EN 12390 Annex A, BS 1881-115A, AS1012. (Optional)

▶Calibration accuracy to BS EN 12390 Class 1, ASTM E4, AS2193 Grade
