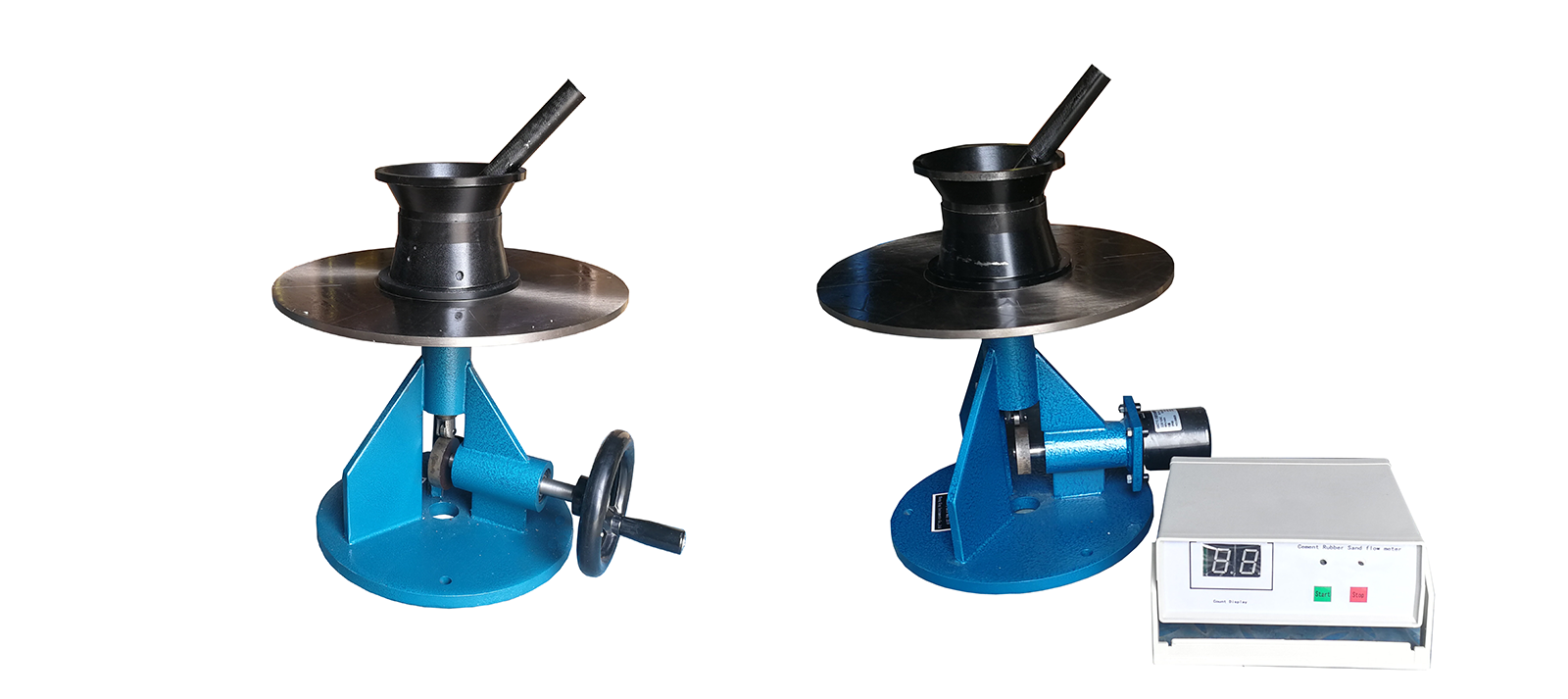

▶The Cement Flow Table according to EN standard. Used for determining the consistency of mortar, lime and cement specimens. Also  manual and motorized models are available.

▶The hand operated model is fitted with a hand wheel. The motor operated model is driven by a motor speed reducer through a mechanical coupling at the rate of 1 revolution per second. The number of drops is preset on a counter and the machine stops automatically at the end of the cycle.

▶EN model, the table is manufactured from steel, stainless steel or brass and has a 300 mm diameter table. The conical mould is made of brass or steel and has dimensions of 100 mm base dia. x 70 mm top dia. x 60 mm height.

▶Total Weight of pulsatory Part: 4.35Kg±0.15Kg

▶Drop height: 10mm±0.2mm

▶Diameter of table: 300mm±1mm

▶Flow mould: 70mm and 100mm diameter X 60mm deep.

▶Tamper: 20mm diameter, 200mm long;
