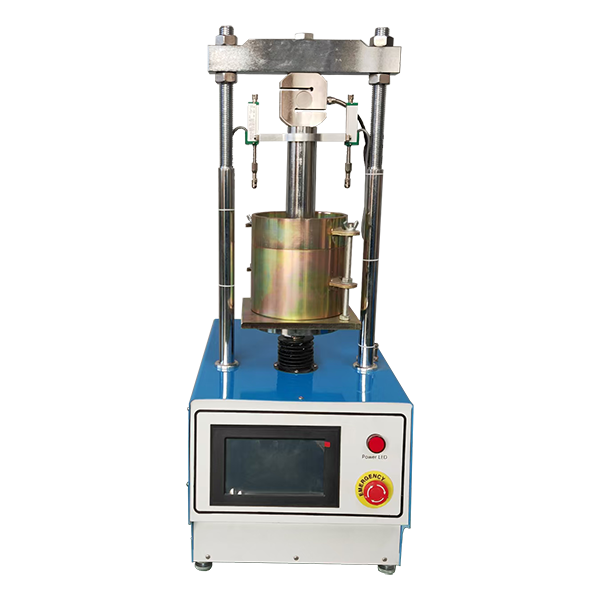

▶Automatic CBR Test Machine is designed for performing laboratory evaluation of the CBR value of highway sub-bases and sub-grade, and determination of the strength of cohesive materials which have maximum particle sizes less than 25 mm. The Machine is composed of a robust and compact two column frame with adjustable upper crossbeam driven by a stepper-motor with a maximum capacity of 50 KN and a data acquisition and processing system.

▶Multi-channel data acquisition

▶Hi-res, 7", touch-screen provides total control and real-time graphical display of tests

▶Machine/Test control and data acquisition via touch-screen

▶Calibration of channels to load cell and transducer

▶Real-time graphical chart and numerical display of tests via touch-screen display

▶RS232 serial port for connecting either PC or printer for data transmission

▶The ram speed can be set between 1 mm/min to 5 mm/min
