WAW SERIES UTM

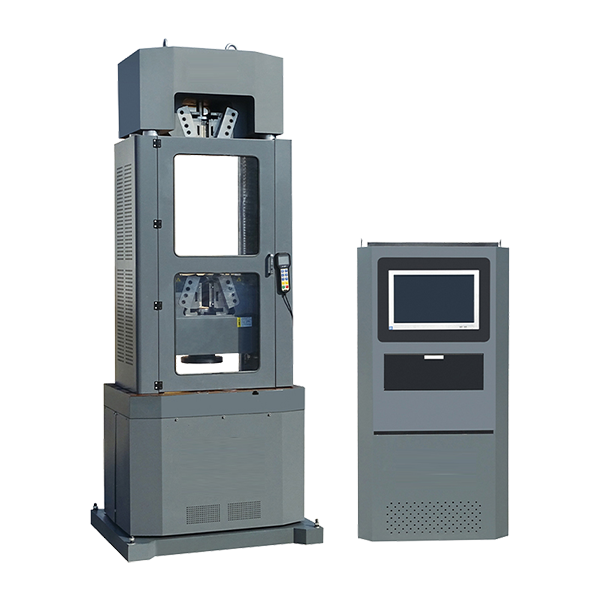

WAW-1000C Wire Strand Testing Machine is driven by Servo-hydraulic cylinder, the electro-hydraulic servo control technology, computer data collection and processing, the closed loop control and automatic detection of high-precision materials testing equipment, its by the test frame, oil source (hydraulic power source), measurement and control system, test accessories.

This machine is six column frame structure, the main oil cylinder in the lower part of frame, the main structure include of base plate, oil cylinder, piston, hub-and-spoke load sensor, lifting motor, platform, screw, pillar, beams and others.

This machine can be applicable for Tension, bending, compression, tearing, shearing for Small components, reinforced plastics, metals, wire, composites, elastomers, wood products, textiles, biomaterials, paper products, adhesives, foam, consumer products

This machine is full computer control with professional test software Equipped with portable control keypad with functions of Up, Down, Stop, Jog up, Jog down, and test start

Controller offers high speed and closed loop control of load, displacement and extension. reliable IC, ,20bit resolution,16 digital input/output port, Built-in port for PC communication, either by RS232(COM) port or USB port, Expandable ports Load protection, over-current protection, over-voltage protection, over-speed protect, and over-travel protection.

This machine used for 8-18mm Wire Strand Testing

Steel strand
clamp

Touch
Panel PC

Full automatic
control

Low
noise
